Daystar Filters

Quantum Calcium II K 2Å PE

Quantum Calcium II K 2Å PE

Regular price $17,990.00
Regular price Sale price $17,990.00
Sale Sold out
Shipping calculated at checkout.

Daystar Calcium K-line Quantum Filters 2.0Å -
suitable for academic purposes. Ideal application: CCD photography or indoor visual viewing environment.

Traditionally, university research has employed the Calcium K-line for studies of Calcium on the Sun. These studies have been instrumental in determining depth of the solar atmosphere. Calcium offers TWO strong absorption lines at 393.3nm and at 396.9nm, known as the K and H lines. Researchers have previously avoided the H line for academic research, as it is very close to the Hydrogen Epsilon line. For purposes of clarity in isolating Calcium, and because imaging sensors offer similar sensitivity to the K as the H lines of Calcium, the K has to date been the target of choice in Calcium filters. However, as the visual spectrum ends at approximately 400nm, the further we venture below this wavelength, the more difficult it is for observers to visually see the image. The H line for visual observations, is much closer to the visual spectrum and easier to see in high contrast violet color. Some observatories have been imaging in Ca II H line, such as the Dutch Open Telescope with outstanding results.

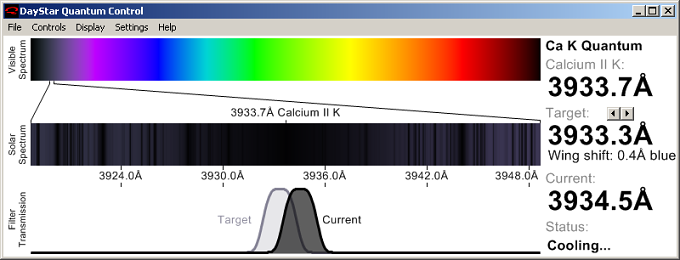

Daystar's new Quantum controls on Calcium II K line are perfectly suited for academic studies in mapping the 3-dimensional structure of the Chromosphere. By controlling wing shift of the Ca II K line filter with precision accurate to 0.1Å, studies can depict intensity differences between the K3, K2 and K1 lines. Observation of the complicated structure of subordinate peaks offer views through different levels in the solar atmosphere.

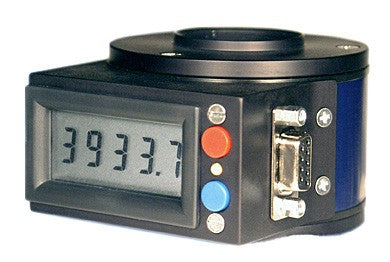

Housing: Quantum (Microprocessor controlled, works at all outside temps, requires power)
Wavelength: Calcium K (3933.7Å)
Bandwidth: 2.0Å
Uniformity: PE (Professional Edition)
Price: $17,990.00
