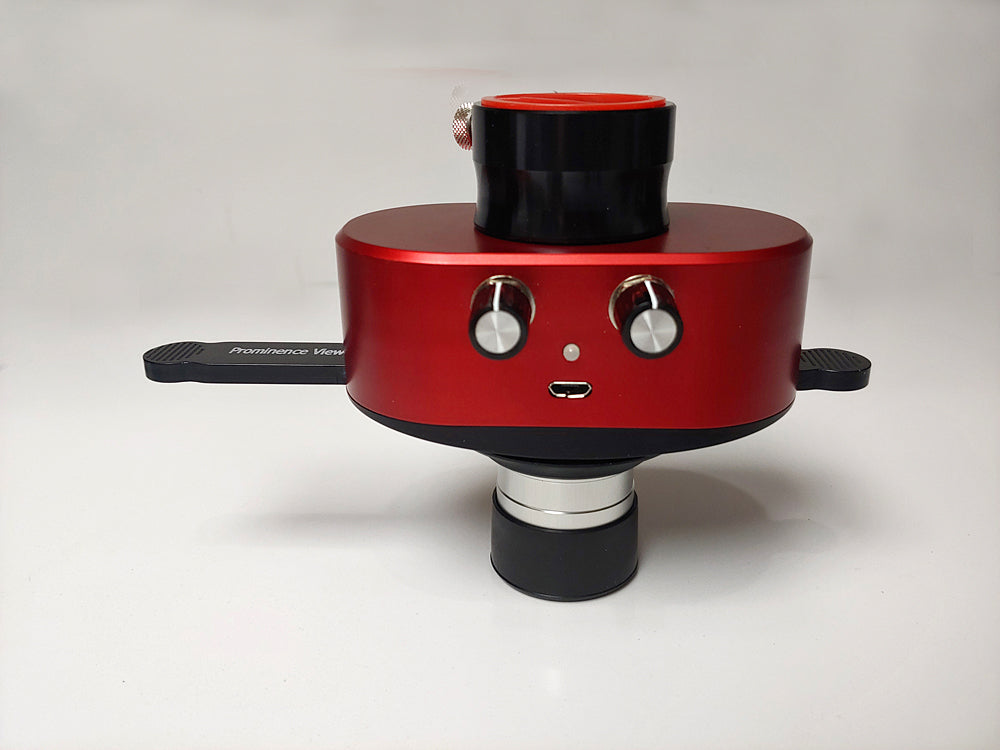

Daystar Quark Combo Gemini H alpha Filter

Daystar Quark Combo Gemini offers BOTH “prominence” or “chromosphere” all-in-one! Enjoy both Chrom and Prom together for only $2,495.00.

Daystar Quark Combo Gemini brings the best solar views with ultimate flexibility and compatibility. Contains both Prominence and Chromosphere bandpass filters for instant slide-action switching between either view on SCT and Mak telescopes as well as refractors with the optional 2.8x or 4.3x telecentric barlows.

Now, observers can enjoy the best of both bandwidth options in one easy to use tool with no equipment swapping or refocusing of any kind.

Push the slider arm side to side like in an eye exam to see the broad stroked prominences of wider bandpass, then the high contrast of narrow bandpass.

GEMINI FILTERS ARE CURRENTLY MADE TO ORDER AND SHIPPING TIMES MAY VARY.

For use on SCTs, Maks, or refractors of F/15 to F/30. The user needn’t worry about configurations. Just insert Quark in your diagonal, add an eyepiece and view.

Telecentric barlows compatible with the Combo Quark are sold separately.

• SCT and Mak users need to purchase an Energy Rejection Filter specific to their telescope for safe operation.

• SCT owners must employ a front mount, off-axis, aperture reduced Energy Rejection Filter (ERF) in order to achieve optimum performance. This front mount ERF will generate a slower focal ratio through aperture reduction while preventing heat build-up in the optical tube assembly.

• Maktsutov owners who operate at a native ~F/15 focal ratio do not need to reduce the aperture of the telescope, but must use front mount energy rejection to prevent overheating of the optical tube assembly.

Exact filter bandpass will vary based on final telescope application, so QUARK* assemblies are qualified with one element to show best prominences and the other to show best surface contrast (chromosphere).  No specific FWHM bandpass is designated.

Outreach astronomers can use the prom vs chrom switch to demonstrate each feature with an extra teaching moment about wing shift going on in fast moving prominences.  Imagers can use the same switch to create comparison images without the need to exchange equipment or refocus with short lived features.

The fully optimized design eliminates the need for any adapters.  It’s all combined in one lightweight eyepiece sized device. The new, compact design configuration eliminates unnecessary components, weight and associated costs. We even reduced power consumption, so the Quark* can now operate all day off a small, palm-sized optional battery pack. Baffles have been added to increase contrast and AR coatings are optimized for the 656nm wavelength.

PRODUCT FEATURES:

• Contains TWO separate Fabry Perot Etalon elements which may be shifted safely via push-pull into view.

• A hand-matched pair of narrower (<0.5Å FWHM) and wider (>0.6Å FWHM) etalons shall be SE grade and independently tuneable

• Front, male 1.25″ eyepiece snout with safety indent slots directly into your diagonal or focuser

• Includes 2° off axis 1.25″ snout adapter for use with off axis SCT and Mak ERFs

• Standard rear female 1.25 eyepiece drawtube output with optional 2″ accessories available

• Brass compression ring to protect your eyepiece. Uses USB power, 5v 1.5amp

• Includes 90-240VAC wall adapter with international plug adapters

• Tuning knob allows wing shifting +/- 0.5Ã with detents at every 0.1Å LED indicator for power, warming, ready, fault

ADDITIONAL PRODUCT INFO:

• 5 year warranty

• Integrated 25mm blocking filter, 21mm clear filter aperture
• Best performance with F/15 – F/30 refractors or Mak’s full aperture; or SCTs and Maks with off axis, aperture reduced ERF
• Full disk viewing possible on refractors up to ~1800mm focal length

• No aperture limitations. May be used on larger refractors for higher magnification view
• Ships in convenient hard case for safe, dust-free storage
• Optional 8-hour battery pack available

RECOMMENDED ACCESSORIES:

2 Inch Eyepiece Holder for Quark

Daystar Tilt Adapter

Daystar Combo Quark 4.3X Telecentric Barlow

Daystar Combo Quark 2.8X Telecentric Barlow
