Sol 100mm Dedicated Solar Telescope - Shipping mid November

Sol 100mm Dedicated Solar Telescope - Shipping mid November

Regular price $4,995.00
Regular price Sale price $4,995.00
Sale Sold out
Shipping calculated at checkout.
Bandpass

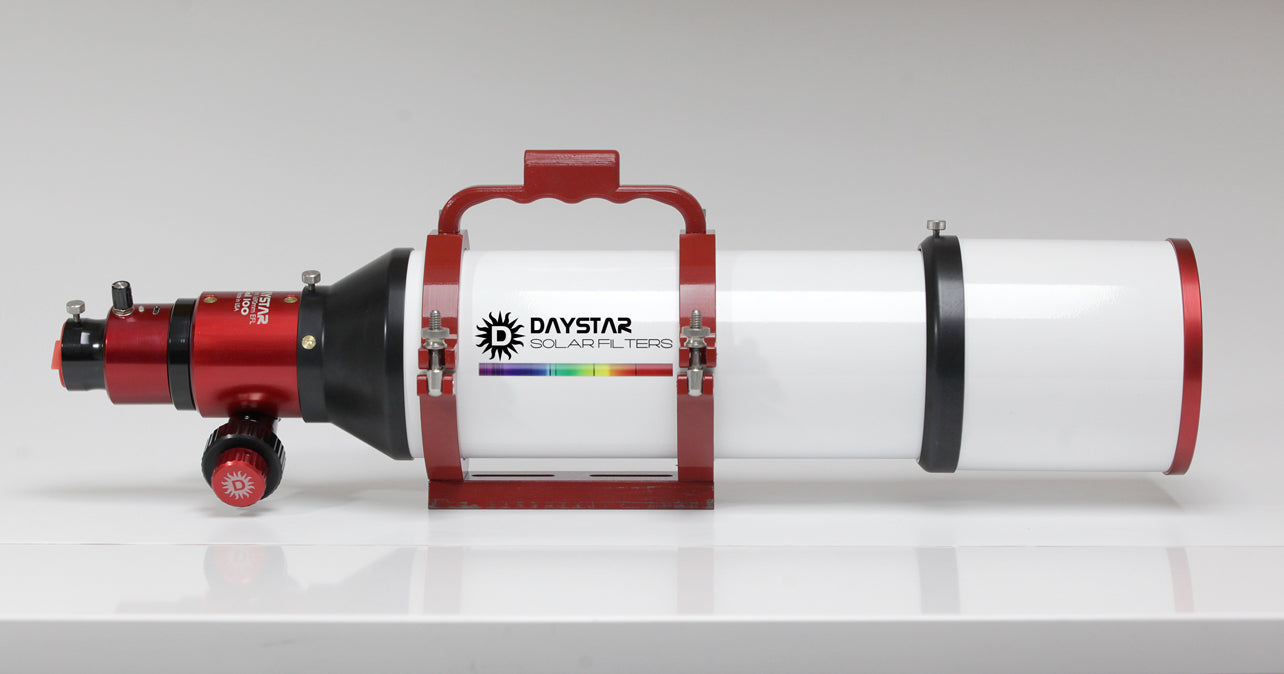

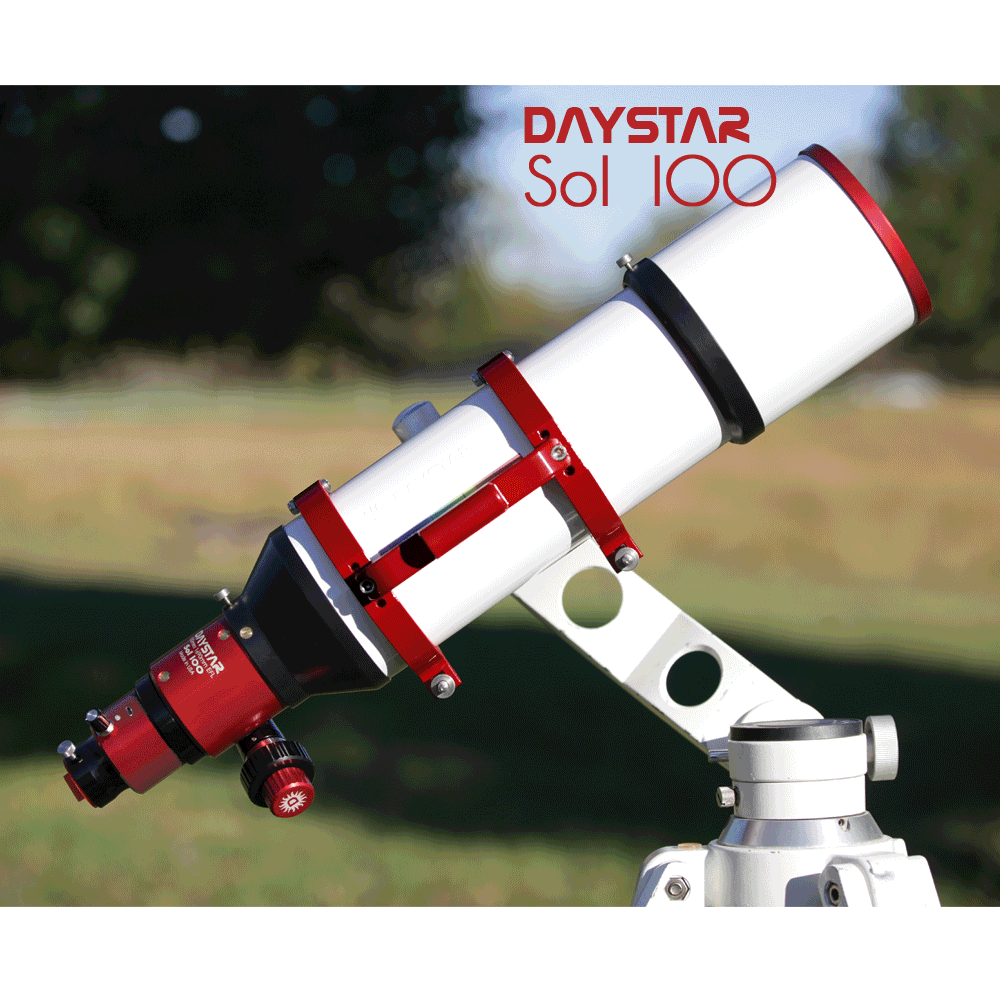

Simplicity meets performance in our all new no compromises 100mm Hydrogen Alpha solar telescope. This integrated solar telescope offers safety and ease of use to show prominences, solar flares, active regions, chromosphere, spicule, and many more exciting phenomena visible in red Hydrogen Alpha light. With changes on the Sun visible after only a few minutes, each day will bring fresh new views never to be repeated.

Price: $4995
Accepting Orders Now, with shipping mid-November 2025.

Available in choice of wider >0.5Å bandpass for bold Prominences or narrow <0.5Å   bandpass for highest surface Chromosphere contrast (like a doublestack) at the SAME PRICE!

DayStar Filters telescopes are all Made in USA in our vertically integrated manufacturing facility.  We performed as much of the process as possible is in house by DayStar employees in order to provide you with quality and service.

Thanks to our Clean Sheet Design, Engineering and advanced CNC machining equipment we have created the smallest and lightest 100mm aperture narrowband solar telescope ever made. With rings, it weighs only 8 pounds (3.6kg) and at about 19 inches long fits into an airline carry-on bag. The integrated carry handle is also a solar finder.

The Daystar Truly Telecentric optical system offers a full disk field of view visually and with APS-C or larger camera sensors, while 1" sensors can use our 0.6x focal reducer and 1/2" sensors can use our 0.33x reducer to accomplish full disk imaging.

The all new 12:1 dual speed focuser, manufactured by DayStar, is compatible with most third party focus motors for easy remote control while imaging. The helical rack and pinion focus mechanism offers smooth, precise focusing and includes a locking brake mechanism, with stainless steel reduction components for durability.

Includes mounting rings, dovetail, carry handle with integrated solar finder, covers, Flat Cap for imaging, AC power supply, USB power cable, 1.25" eyepiece adapter, and durable hard case.

Compatible with all DayStar Quark accessories, including 2" eyepiece adapter, imaging tilt adapters and focal reducers, battery and more.

The Sol telescope series is also available in 60mm, 80mm, and 130mm apertures in order to fit all observing goals and budgets.

Specifications

Aperture: 100mm (3.94")

Effective focal length: 1690mm

Focal ratio: F/16.9

Field of view: 0.75°, passes full solar disk.

Wavelength: 6562.8 angstroms (656.28 nm)

Bandwidth: Chromosphere (0.5Å FWHM or narrower, which still shows prominences!)

Tuning: Electronic PID controlled thermal tuning with manual +/-0.5Å range and 0.1Å steps)

Settling time: approximately 5-6 minutes after power up or change of wing shift.

Barlow: Fully integrated 4.3x telecentric barlow optimized for Hydrogen Alpha

Blocking filter: integrated 18mm

Clear aperture: 19mm

Motorized focus compatiblity: Focuser shaft sizes of 6mm coarse and 5/32" (4mm) fine are compatible with most third party focus motors. Three female M4 screw holes are provided for affixing motor mounting brackets. The fine focus reduction cone has a 1.34" (34mm) diameter after both knobs are removed.

Focus travel: accommodates camera flush to filter, and visual use through 2" diagonal.
Performance optimized for mid travel, corresponding to 1.25" eyepiece and diagonal.

Locking retractable dew shield.

Dovetail: Vixen compatible with 1/4-20 tapped hole for use with camera tripod.

Power required: USB 5v power, 1.5 amp, micro-B connector. Power must be supplied for proper operation.

90-240VAC AC power adapter is included, with US, UK, Euro, and Australian plugs.

Ambient operating temperature range: 40-100° F.

Dimensions: 150mm wide, 163mm tall, 489-613mm long depending on dew shield and focus position.

Main tube outside diameter: 111mm

Dew shield outside diameter: 127mm (use included FC130 flat cap)

OTA Only Weight: 6.6lbs / 3kg
Weight with Tube rings and handle: 8lb / 3.6 kg

Warranty: 3 years
